4 Module Touch Panel Switch
Expanded, Independent Control for Every Room
Manage up to seven independent loads from a single elegant panel. Primezen's 4 module touch panel switch brings lighting, fans, curtains and connected appliances together under touch, app or voice control — available in five configurations (ZEN 401, 403, 404, 406, 407) to match your room's exact switching needs.
Up to 7 Channels
Touch + App
Smart Scenes
Balanced Automation for Larger Rooms
The Primezen 4 Module Touch Panel Switch brings structured, expanded control to bedrooms, living rooms and offices where several lights, fans, curtains and appliances need to be managed from one place. Each switch module operates independently while staying fully integrated with the Primezen ecosystem, so you can control everything by touch, through the mobile app, or by voice with Alexa and Google Assistant. Customizable icon colours, sleek touch buttons and Smart Scene automation let you personalise the panel to your room, while the built-in child lock keeps it safe for family homes.
- Touch panel and app control from a single switch
- Works with Alexa and Google Assistant
- Five configurations covering 4 to 7 output channels
- Fan speed and curtain control options in select variants
- Child lock and Smart Scene automation built in
Five 4-Module Panels, Built for Different Rooms

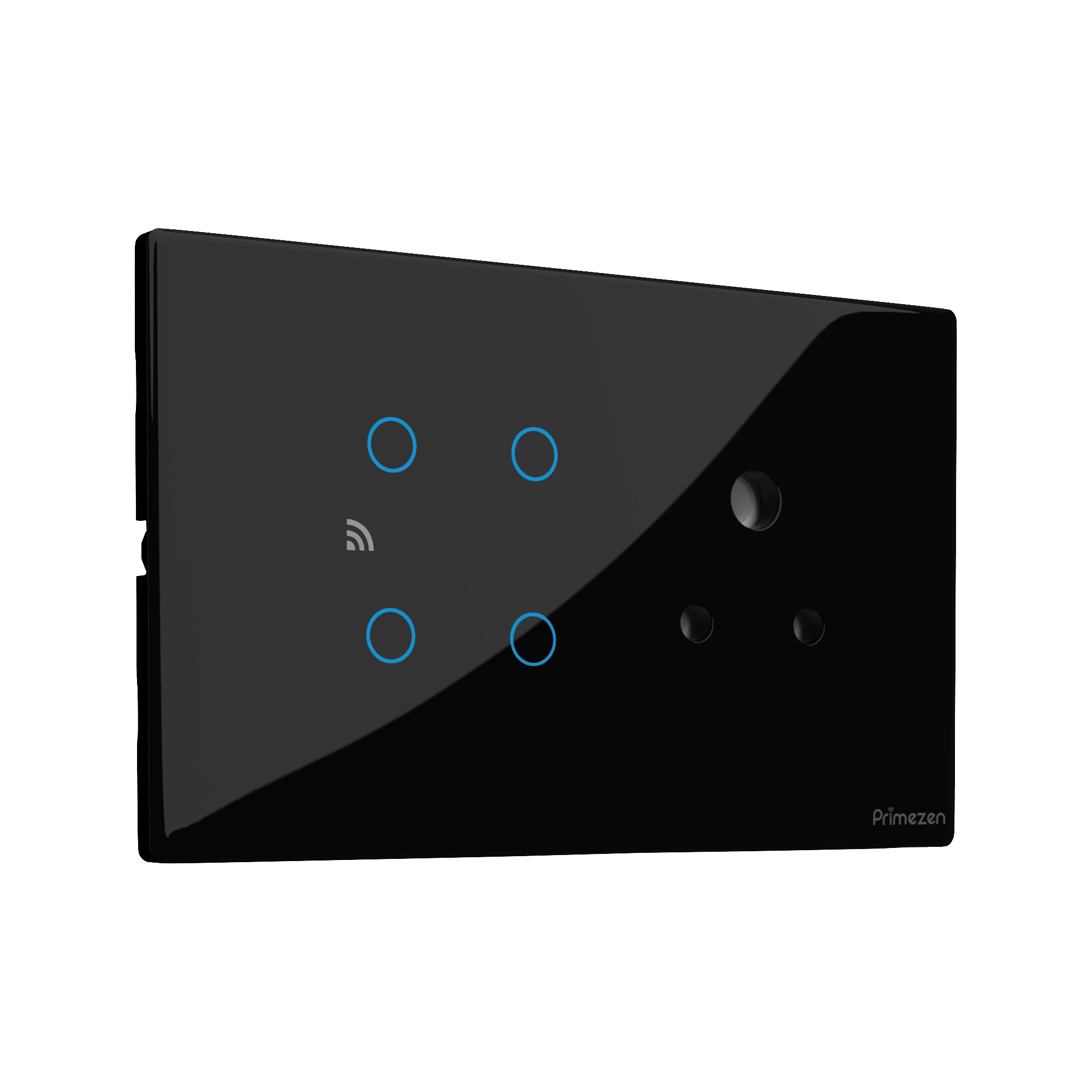

ZEN 401
A 4-channel panel with mixed load ratings plus a built-in 6A/16A socket, suited to rooms needing a spare power point alongside switching.
- Output Channels 4
- Current 5A×2, 16A×1, 15A×1
- Socket 6A or 16A

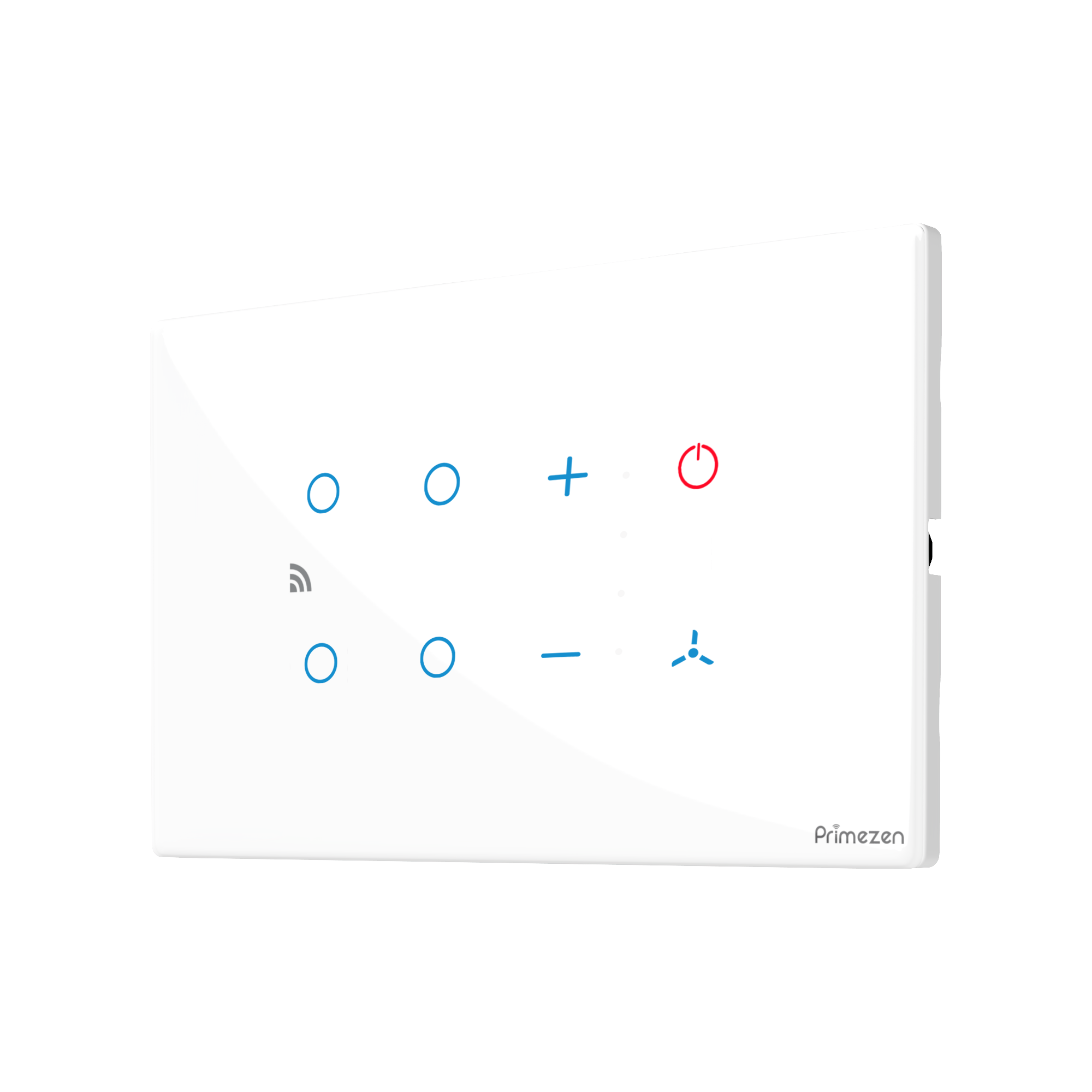

ZEN 403
A 5-channel panel with 1 master key, mixed-load switches, a two-way switch, plus fan switch and fan speed control for climate and lighting together.
- Output Channels 5
- Current 5A×2, 15A×1, 16A×1, 1 Fan
- Installation Size 4 Module
ZEN 404
A 5-channel panel combining a master switch, two-way switch, fan switch, fan speed control and a dedicated curtain-control channel.
- Output Channels 5
- Current 1 Curtain, 15A×1, 16A×1, 1 Fan
- Installation Size 4 Module
ZEN 406
A 7-channel panel with a master switch, three 5A switches, a two-way switch and a curtain-control channel — built for rooms with multiple lighting zones.
- Output Channels 7
- Current 1C, 5A×3, 15A×1, 16A×1
- Installation Size 4 Module

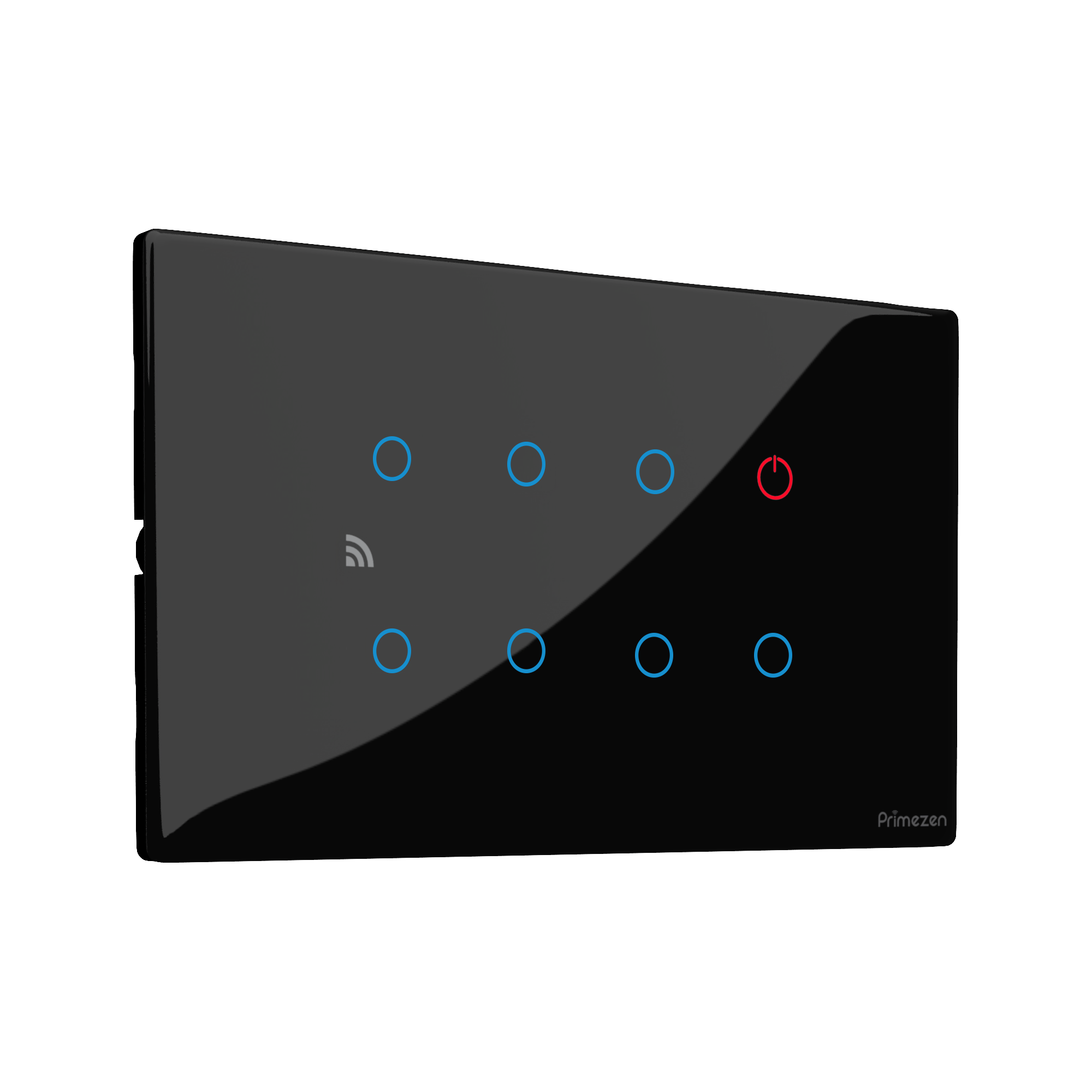

ZEN 407
A 7-channel panel with a master switch, five individual 5A switches and a two-way switch — the widest lighting coverage in the 4 module range.
- Output Channels 7
- Current 5A×5, 15A×1, 16A×1
- Installation Size 4 Module
How the Touch Panel Switch Works
Touch, Tap or Speak
Control each independent channel directly from the glass touch panel, from the Primezen app, or with an Alexa or Google Assistant voice command.
Command Reaches the Right Channel
The panel routes the command to the correct switching channel — lighting, fan, curtain or socket — wired to that specific load.
Scenes Automate the Routine
Smart Scenes let you group multiple channels into a single touch or schedule, reducing manual operation and energy use.
Note: Wiring must be completed by a qualified electrician in line with the panel's terminal wiring diagram and local electrical codes.
Why Choose the 4 Module Touch Panel Switch?
Where Can the 4 Module Touch Panel Be Used?
Living Rooms
Combine lighting zones, fan and curtain control from one panel.
Master Bedrooms
Manage bedside lighting, fan speed and curtains together.
Home Offices
Independent channels for task lighting, ambient lighting and devices.
Hotel Rooms
Wide switching coverage for guest-friendly, all-in-one control.
Multi-Zone Living Areas
Handle several lighting circuits without adding extra switch points.
Renovation Projects
Upgrade existing multi-gang switch points to smart glass panels.
A Glass Panel That Complements Any Interior
Each 4 module panel is available in Black and White finishes, with a 152 × 91 mm profile and customizable RGB icon colours to match your room.
Compare All 5 Configurations
| Specification | ZEN 401 | ZEN 403 | ZEN 404 | ZEN 406 | ZEN 407 |
|---|---|---|---|---|---|
| Power Supply | 180V–415V | 180V–415V | 180V–415V | 180V–415V | 180V–415V |
| Output Channels | 4 | 5 | 5 | 7 | 7 |
| Operational Current | 5A×2, 16A×1, 15A×1 | 5A×2, 15A×1, 16A×1, 1F | 1C, 15A×1, 16A×1, 1F | 1C, 5A×3, 15A×1, 16A×1 | 5A×5, 15A×1, 16A×1 |
| Fan Control | — | Yes | Yes | — | — |
| Curtain Control | — | — | Yes | Yes | — |
| Socket | 6A / 16A | — | — | — | — |
| Wiring Method | Terminal | Terminal | Terminal | Terminal | Terminal |
| Dimensions | 152 × 91 mm | 152 × 91 mm | 152 × 91 mm | 152 × 91 mm | 152 × 91 mm |
| Surge Protection | 2.5kV | 2.5kV | 2.5kV | 2.5kV | 2.5kV |
| Installation Size | 4 Module | 4 Module | 4 Module | 4 Module | 4 Module |
1C = 1 curtain channel, 1F = 1 fan channel. Wiring diagrams for each configuration are available on request — consult a qualified electrician before installation.
Complete Your Primezen Automation Setup
The 4 module touch panel range can be paired with other Primezen controllers, gateways and sensors depending on your intended use. Explore related products to build out a fuller automation setup:
Frequently Asked Questions
What is a 4 module touch panel switch?
It's a compact glass touch panel that consolidates multiple conventional switches into one interface, controlling lights, fans, curtains, sockets and other connected loads by touch, through the Primezen app, or by voice via Alexa or Google Assistant.
Which ZEN 4-module configuration should I choose?
Choose based on the loads in your room: ZEN 401 adds a socket alongside 4 mixed-load channels, ZEN 403 and ZEN 404 add fan control (with ZEN 404 also including curtain control), and ZEN 406 and ZEN 407 offer 7 channels for rooms with more lighting zones.
Can the touch panel be controlled remotely?
Yes. In addition to touch operation, every 4 module panel can be controlled through the Primezen mobile app from anywhere, and integrates with Alexa and Google Assistant for voice control.
Do any configurations support fan speed control?
Yes, ZEN 403 and ZEN 404 both include a dedicated fan switch and fan speed control channel in addition to their lighting channels.
Do any configurations support curtain control?
Yes, ZEN 404 and ZEN 406 each include one dedicated curtain-control channel for motorised curtains or blinds.
What colours are available?
The 4 module touch panel range is available in Black and White finishes, with customizable RGB icon colours on the panel itself.
What is the installation size and wiring method?
All five configurations use a 4-module installation footprint (152 x 91 mm) with terminal wiring, and should be installed by a qualified electrician.
Where can I buy the Primezen 4 module touch panel?
You can request product details and pricing directly through our contact page, or reach out to our team via WhatsApp for assistance choosing the right configuration.
Explore More of the Zen Touch Panel Range
Let's Build a Smarter Home Together
Speak with Primezen to find the right 4 module touch panel configuration for your room and load requirements.
4 Module Touch Panel for Intelligent Home Control
A refined touch panel designed to manage multiple devices from one elegant interface, combining smart automation with modern design.
Expanded Control for Everyday Living
The 4 module touch – panel brings structured and intelligent control to your home, allowing four independent devices to operate smoothly from a single interface. Whether managing lights, fans, curtains, or other connected appliances, each switch module works independently while remaining fully integrated with your smart home ecosystem.
This smart electrical panel functions as both a stylish switch panel and a powerful digital switch panel, offering control through touch, mobile application, or voice assistants like Alexa and Google Assistant. Designed for modern interiors, it blends aesthetics with performance. Customizable icon colors, responsive touch buttons, and Smart Scene functionality allow homeowners to personalize their automation experience. The built-in child lock enhances safety, while energy-efficient automation ensures practical everyday use.
The training, marketing support, and after-sales assistance provided by the team especially Saloni soni mam and Chinthan sir make the partnership smooth and trustworthy. Our clients are highly satisfied with the smart automation systems, which are easy to use, energy-efficient, and designed for modern living.
We truly value this partnership and look forward to continuing our association for many more years, working together to expand smart home solutions and bring convenience to more customers.
– Testimonials
What Living with Primezen Feels Like
– Why Choose Primezen
Balanced Automation with Modern Design
- Premium stylish switch panel with modular flexibility
- Dual control via touch - panel and smartphone app
- Compatible with smart modular switches and controllers
- Customizable icons and elegant touch plate finish
- Independent switch module control for better flexibility
- Secure operation with child lock feature
Primezen’s 4 module touch-panel delivers the ideal balance between design and functionality, acting as a smart switch panel that enhances automation without compromising interior aesthetics.
