6 Module Touch Panel Switch
Premium Multi-Device Control for Larger Rooms
Manage up to nine independent loads from one refined panel. Primezen's 6 module touch panel switch is built for homes that need greater control flexibility — lighting, fans, curtains, sockets and more, all from touch, app or voice — available in eight configurations (ZEN 601 through ZEN 610) to match your room.
Up to 9 Channels
Touch + App
Smart Scenes
Refined Automation for Premium Smart Spaces
The Primezen 6 Module Touch Panel Switch brings advanced, structured control to larger rooms and premium interiors where several lighting circuits, curtains, fans, sockets and appliances need managing from one place. Each module operates independently while staying fully integrated with the Primezen ecosystem, so you can control everything by touch, through the mobile app, or by voice with Alexa and Google Assistant. Customizable icon colours, sleek touch buttons and Smart Scene automation let you personalise the panel to your lifestyle, while the built-in child lock keeps it safe for family homes.
- Touch panel and app control from a single switch
- Works with Alexa and Google Assistant
- Eight configurations covering 5 to 9 output channels
- Fan speed, curtain control and socket options across the range
- Child lock and Smart Scene automation built in
Eight 6-Module Panels, Built for Different Rooms

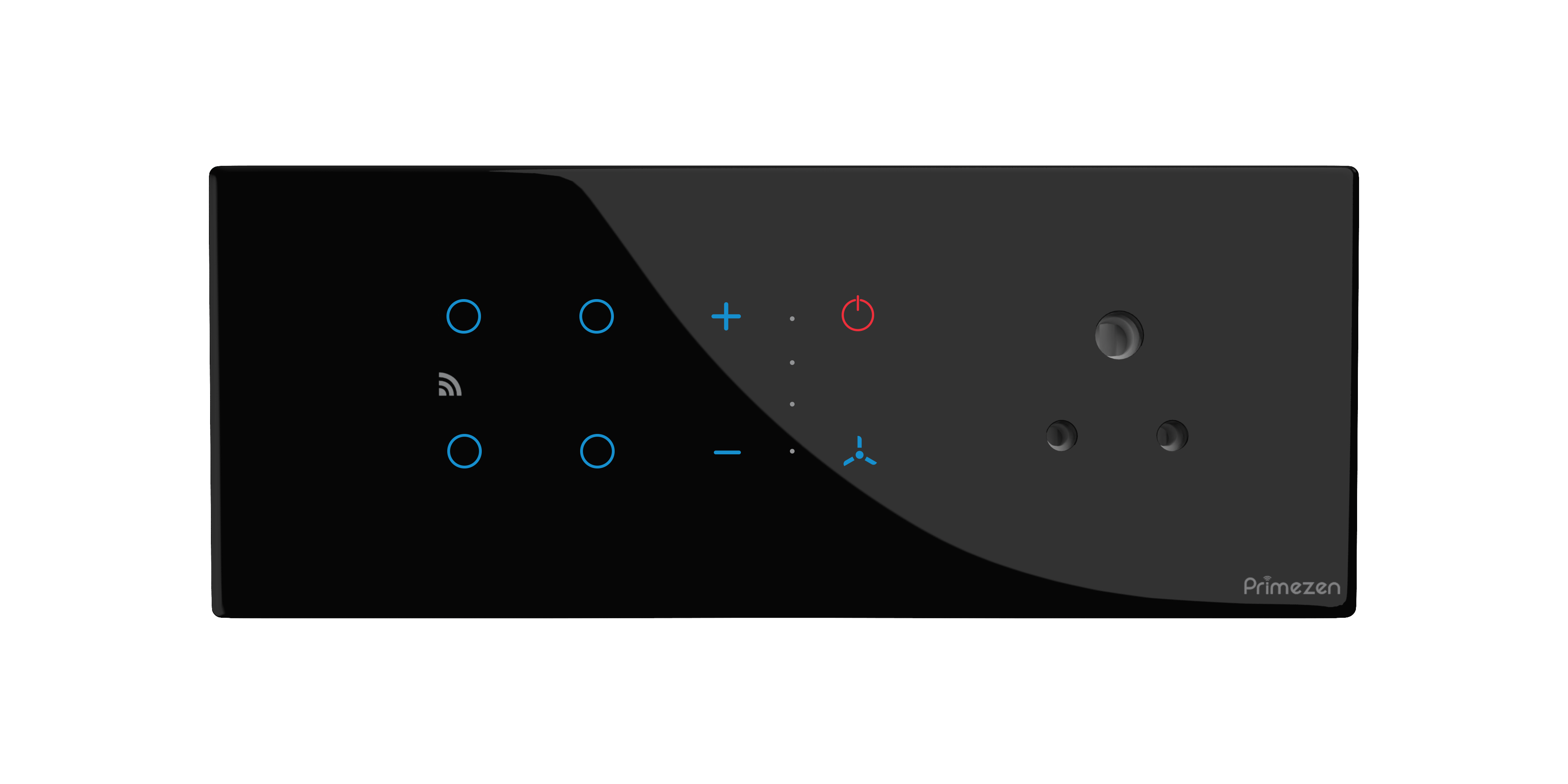

ZEN 601
5 channels with mixed loads, fan switch, fan speed control and a built-in 6A/16A socket.
- Channels 5
- Current 5A×2, 15A×1, 16A×1, 1F
ZEN 603
5 channels combining curtain control, fan switch, fan speed control and a 6A/16A socket.
- Channels 5
- Current 1C, 16A×1, 15A×1, 1F
ZEN 604
7 channels with a curtain-control channel, three 5A switches and a 6A/16A socket.
- Channels 7
- Current 1C, 5A×3, 15A×1, 16A×1

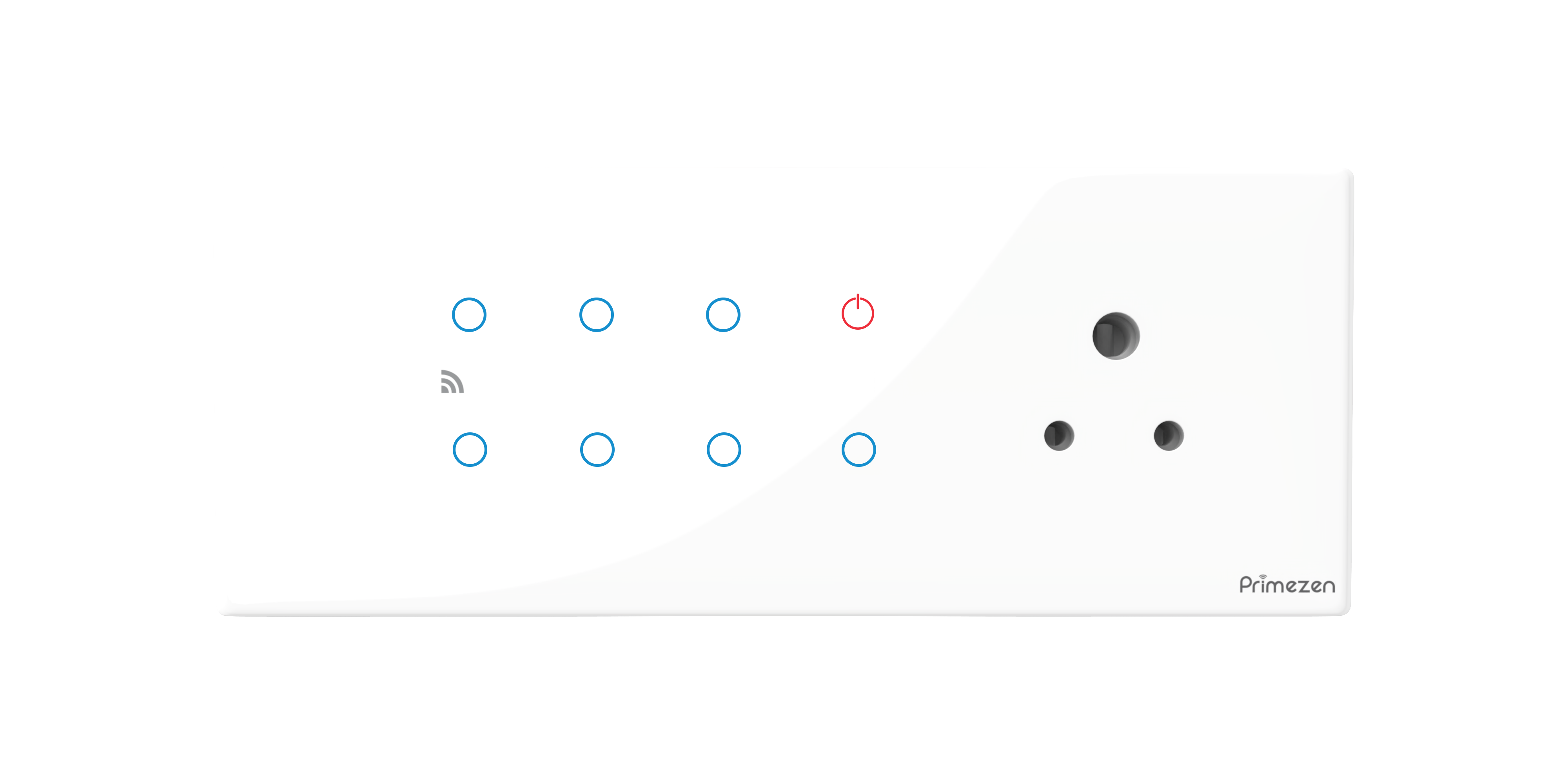

ZEN 605
7 channels with five individual 5A switches for wide lighting coverage, plus a 6A/16A socket.
- Channels 7
- Current 5A×5, 15A×1, 16A×1
ZEN 606
7 channels with four 5A switches plus fan switch and fan speed control for wide lighting and climate control.
- Channels 7
- Current 5A×4, 15A×1, 16A×1, 1F
ZEN 607
7 channels combining curtain control, fan switch, fan speed control and two 5A lighting switches.
- Channels 7
- Current 1C, 5A×2, 15A×1, 16A×1, 1F

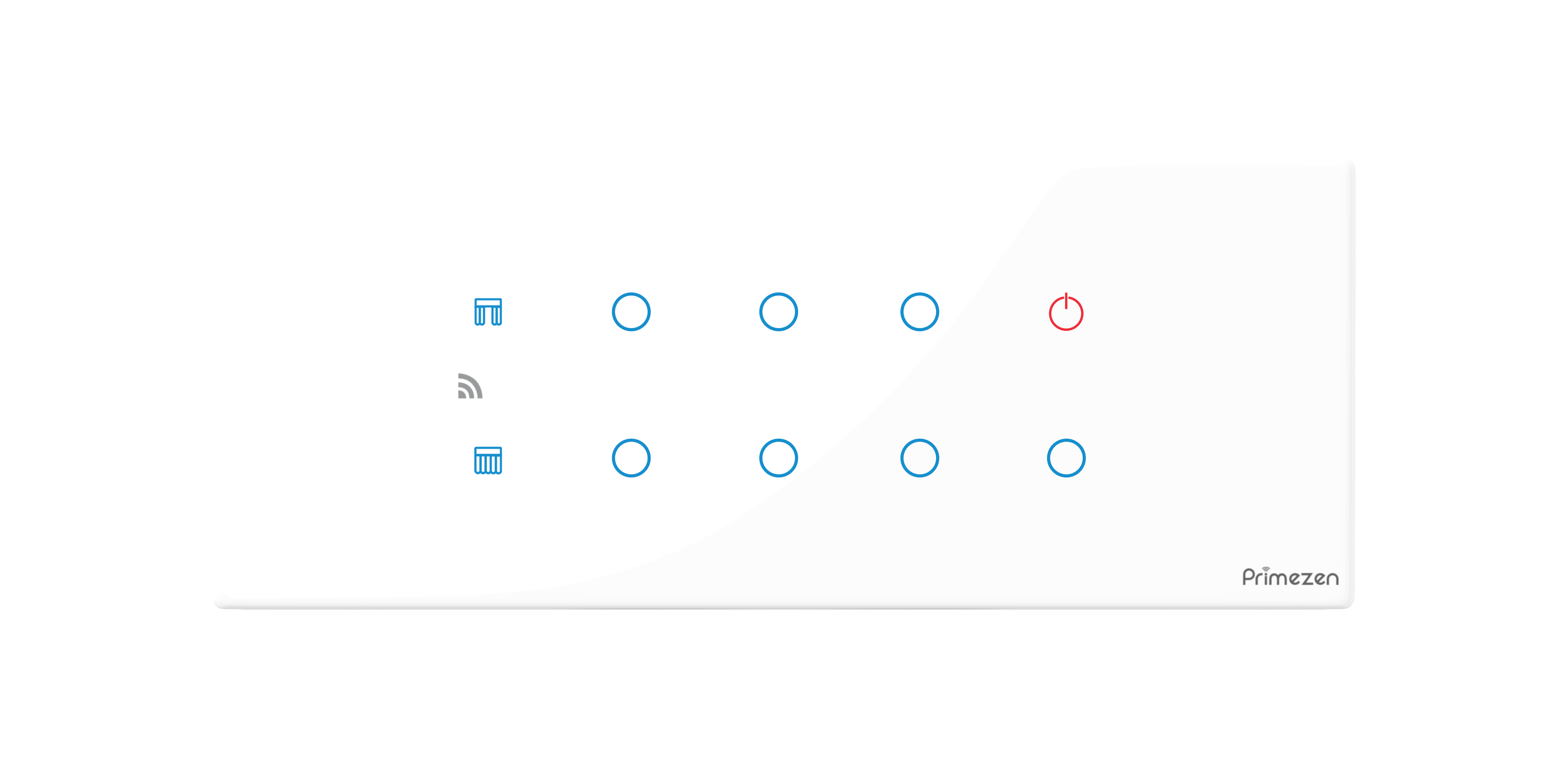

ZEN 608
9 channels with a curtain-control channel and five 5A switches — the widest coverage that still includes curtains.
- Channels 9
- Current 1C, 5A×5, 15A×1, 16A×1
ZEN 610
9 channels with seven individual 5A switches — the widest pure-lighting coverage in the 6 module range.
- Channels 9
- Current 5A×7, 15A×1, 16A×1
How the Touch Panel Switch Works
Touch, Tap or Speak
Control each independent channel directly from the glass touch panel, from the Primezen app, or with an Alexa or Google Assistant voice command.
Command Reaches the Right Channel
The panel routes the command to the correct switching channel — lighting, fan, curtain or socket — wired to that specific load.
Scenes Automate the Routine
Smart Scenes let you group multiple channels into a single touch or schedule, reducing manual operation and energy use.
Note: Wiring must be completed by a qualified electrician in line with the panel's terminal wiring diagram and local electrical codes.
Why Choose the 6 Module Touch Panel Switch?
Where Can the 6 Module Touch Panel Be Used?
Large Living Rooms
Combine multiple lighting zones, fan and curtain control from one panel.
Master Suites
Manage bedside lighting, fan speed, curtains and sockets together.
Home Theatres & Studies
Independent channels for accent, task and ambient lighting.
Premium Hotel Suites
Wide switching coverage for guest-friendly, all-in-one control.
Multi-Zone Living Areas
Handle several lighting circuits without adding extra switch points.
Renovation Projects
Upgrade existing multi-gang switch points to smart glass panels.
A Glass Panel That Complements Any Interior
Each 6 module panel is available in Black and White finishes, with a 221 × 91 mm profile and customizable RGB icon colours to match your room.
Compare All 8 Configurations
| Spec | ZEN 601 | ZEN 603 | ZEN 604 | ZEN 605 | ZEN 606 | ZEN 607 | ZEN 608 | ZEN 610 |
|---|---|---|---|---|---|---|---|---|
| Channels | 5 | 5 | 7 | 7 | 7 | 7 | 9 | 9 |
| Current | 5A×2,15A,16A,1F | 1C,16A,15A+1F | 1C,5A×3,15A,16A | 5A×5,15A,16A | 5A×4,15A,16A,1F | 1C,5A×2,15A,16A,1F | 1C,5A×5,15A,16A | 5A×7,15A,16A |
| Fan Control | Yes | Yes | — | — | Yes | Yes | — | — |
| Curtain Control | — | Yes | Yes | — | — | Yes | Yes | — |
| Socket | 6A/16A | 6A/16A | 6A/16A | 6A/16A | — | — | — | — |
| Wiring | Terminal | Terminal | Terminal | Terminal | Terminal | Terminal | Terminal | Terminal |
| Dimensions | 221×91mm | 221×91mm | 221×91mm | 221×91mm | 221×91mm | 221×91mm | 221×91mm | 221×91mm |
| Installation | 6 Module | 6 Module | 6 Module | 6 Module | 6 Module | 6 Module | 6 Module | 6 Module |
1C = 1 curtain channel, 1F = 1 fan channel. Power supply 180V-415V, surge protection 2.5kV across all configurations. Wiring diagrams available on request — consult a qualified electrician before installation.
Complete Your Primezen Automation Setup
The 6 module touch panel range can be paired with other Primezen controllers, gateways and sensors depending on your intended use. Explore related products to build out a fuller automation setup:
Frequently Asked Questions
What is a 6 module touch panel switch?
It's a premium glass touch panel that consolidates multiple conventional switches into one interface, controlling lights, fans, curtains, sockets and other connected loads by touch, through the Primezen app, or by voice via Alexa or Google Assistant.
Which ZEN 6-module configuration should I choose?
Choose based on the loads in your room: ZEN 601, 603, 604 and 605 include a socket; ZEN 601, 603, 606 and 607 include fan control; ZEN 603, 604, 607 and 608 include curtain control; and ZEN 608 and 610 offer the highest channel count (9) for rooms with many lighting zones.
Can the touch panel be controlled remotely?
Yes. In addition to touch operation, every 6 module panel can be controlled through the Primezen mobile app from anywhere, and integrates with Alexa and Google Assistant for voice control.
Do any configurations include a spare socket?
Yes, ZEN 601, 603, 604 and 605 each include a built-in 6A or 16A socket alongside their switching channels.
What colours are available?
The 6 module touch panel range is available in Black and White finishes, with customizable RGB icon colours on the panel itself.
What is the installation size and wiring method?
All eight configurations use a 6-module installation footprint (221 x 91 mm) with terminal wiring, and should be installed by a qualified electrician.
Where can I buy the Primezen 6 module touch panel?
You can request product details and pricing directly through our contact page, or reach out to our team via WhatsApp for assistance choosing the right configuration.
Explore More of the Zen Touch Panel Range
Let's Build a Smarter Home Together
Speak with Primezen to find the right 6 module touch panel configuration for your room and load requirements.
6-Module Smart Touch Switch Panel
A premium smart touch switch panel designed to manage multiple devices from one intelligent interface, combining elegant design with powerful smart automation.
Expanded Multi-Device Control for Modern Interiors
Experience refined automation with the 6 module touch panel, built for homes that require greater control flexibility. This advanced smart switch panel allows six independent devices to operate through a single, sleek interface. Whether managing lighting circuits, curtains, fans, or other connected appliances, each module functions independently while staying fully integrated with your smart home ecosystem.
This digital switch panel connects seamlessly with Primezen controllers and can be operated through the touch interface, mobile application, or voice assistants like Alexa and Google Assistant. Customizable icon colors, elegant touch buttons, and Smart Scene configurations allow you to tailor automation based on your lifestyle. The built-in child lock enhances safety, while energy-efficient scheduling helps optimize power consumption. Designed as a smart electric switch panel for modern homes, it combines performance, aesthetics, and intelligent automation in one sophisticated solution.
The training, marketing support, and after-sales assistance provided by the team especially Saloni soni mam and Chinthan sir make the partnership smooth and trustworthy. Our clients are highly satisfied with the smart automation systems, which are easy to use, energy-efficient, and designed for modern living.
We truly value this partnership and look forward to continuing our association for many more years, working together to expand smart home solutions and bring convenience to more customers.
– Testimonials
What Living with Primezen Feels Like
– Why Choose Primezen
Designed for Premium Smart Spaces
- Elegant stylish switch Panel with modular flexibility
- Acts as a powerful smart switch panel for multi-device control
- Works with smart modular switches and controllers
- Touch panel and mobile app dual control
- Customizable icons and automation keypad functionality
- Secure operation with integrated child lock
Primezen’s 6 module touch panel delivers advanced automation with refined aesthetics, making it ideal for larger rooms and premium smart home environments.
