ZEN-CURT

ZEN-CURT

CURTAIN CONTROLLER

The Primezen ZEN-CURT Curtain Controller allows seamless integration with traditional wired switches, providing effortless control over motorized curtains, blinds, and roller shutters with an AC100V – 240V power supply. Enjoy added convenience with voice control capabilities via a smart speaker. Compact and easy to install, it offers versatile functionality to create the perfect ambiance in your home.

SPECIFICATIONS

  • Product Model

    ZEN-CURT

  • Maximum output power

    374W (220V Input)

  • Operate range

    80m (Outdoors) 25m(Indoors), Depending on building materials

  • Wiring Method

    Terminals

  • Dimensions

    L44*W44*H22mm

  • Operational temperature

    -20°C ~ +55°C

  • Standby power consumption

    ≤0.5W

  • Power Supply

    AC100V -240V 50/60Hz

  • Radio frequency

    RF 433MHz

  • Storage Capacity

    Each channel can store up to 10 ZEN Switches Info

  • Installation Method

    The box of switch

  • RF Receive Sensitivity

    -110dBm

  • IP Rating

    IP20

  • Versions Available

    ZEN-CURT (Wi-Fi) ZEN-CURT RF (Needs Gateway for App/Alexa Control)

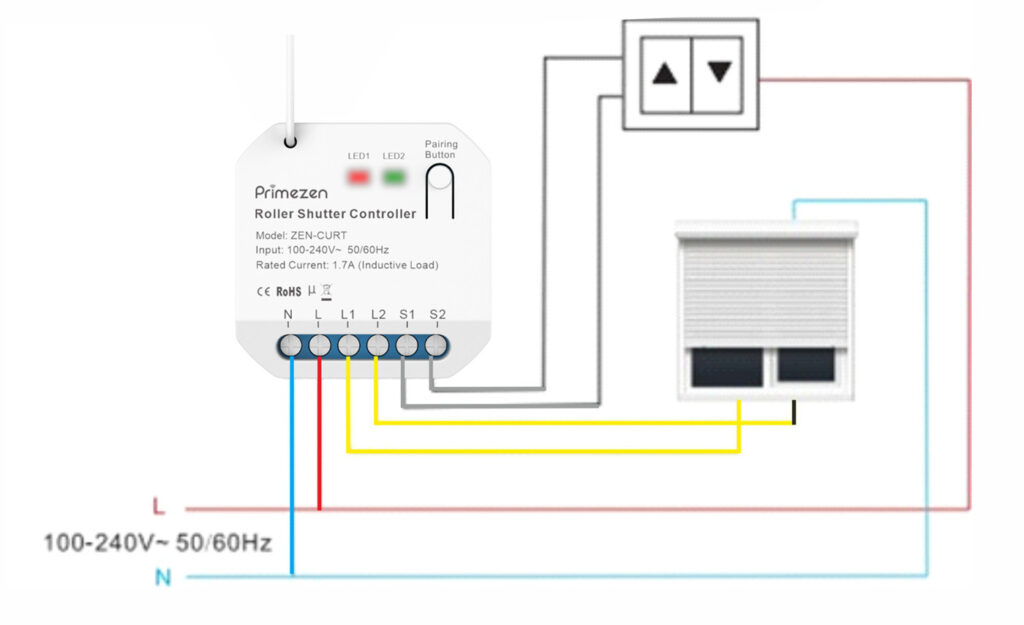

WIRING DIAGRAM

  • L (Live Cable)

    Input Live Cable

  • S1

    Traditional switch forward rotation input (roller shutter opening)

  • L1

    The output of the motor forward switch

  • N (Neutral Cable)

    Input Neutral Cable

  • S2

    Traditional switch reverse rotation input (roller shutter closing)

  • L2

    The output of the motor reverse switch
