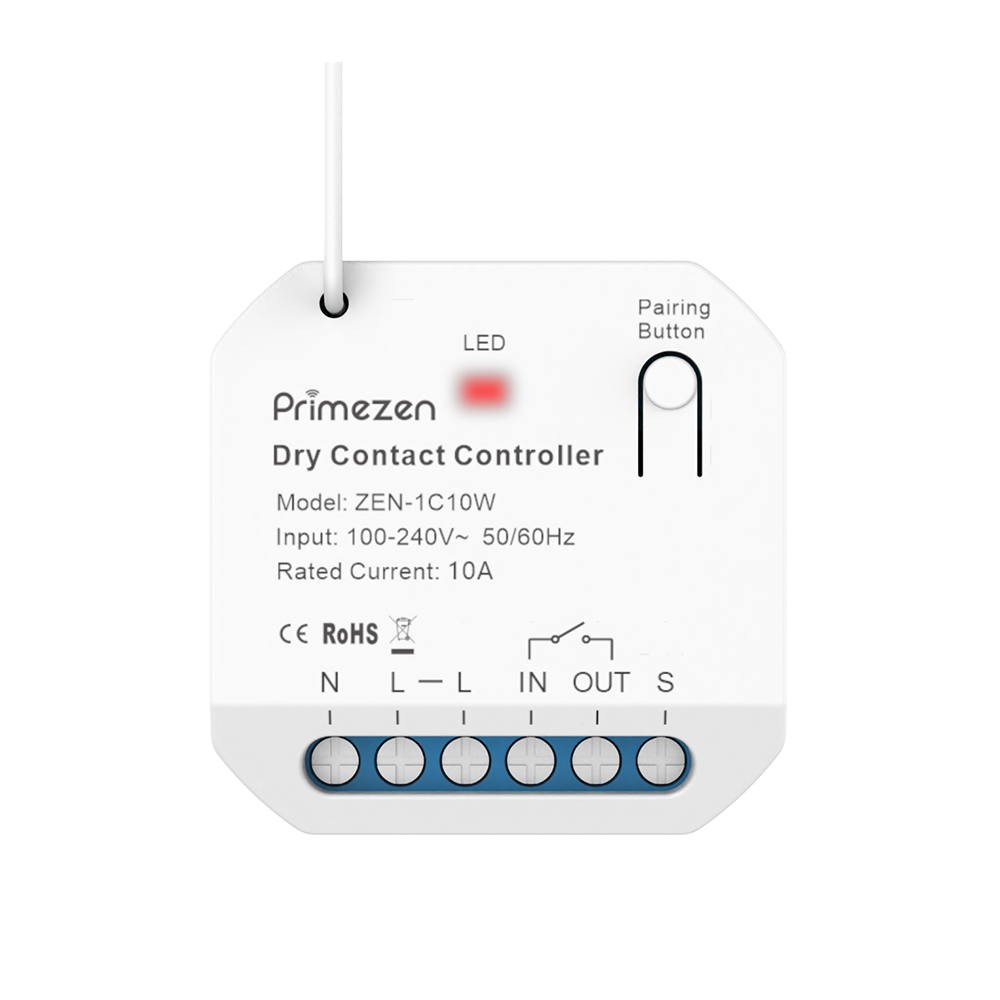

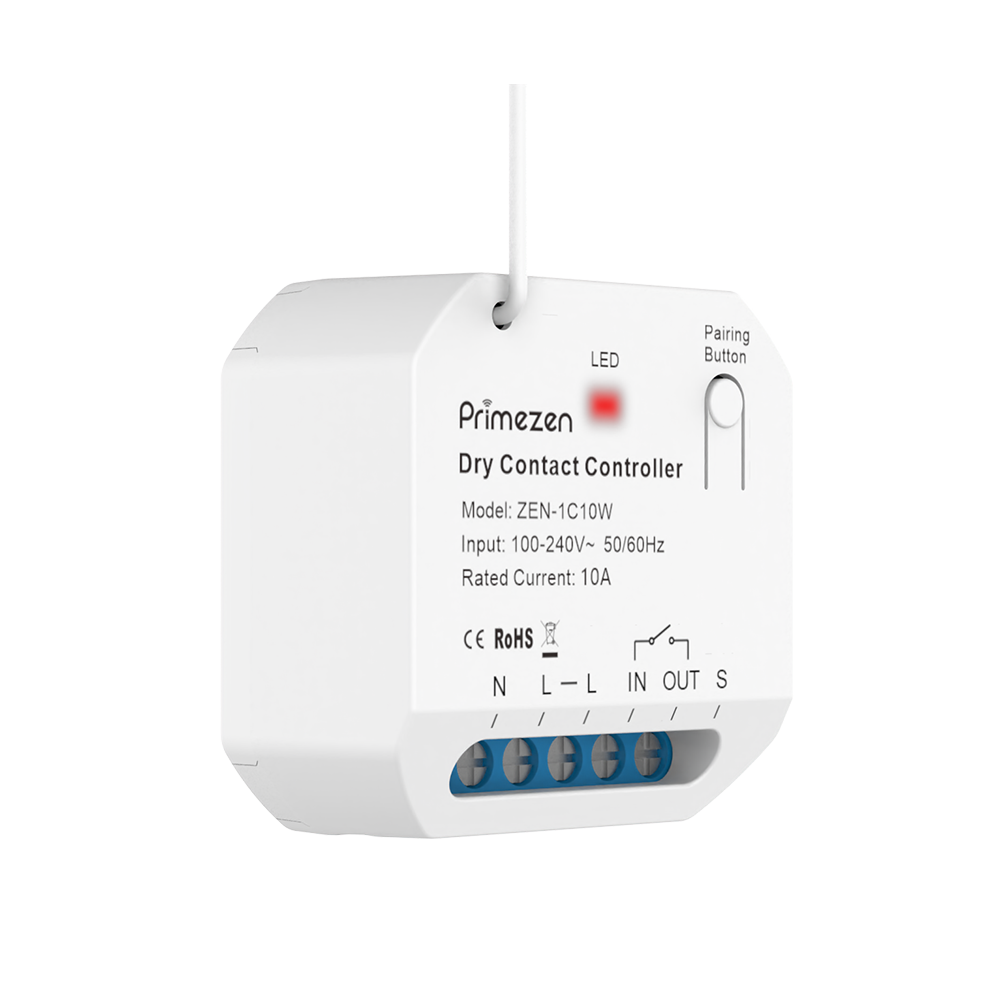

ZEN-1C10W

ZEN-1C10W

10AMP DRY CONTACT CONTROLLER

The ZEN-1C10W Dry Contact Controller is compact and easy to install, providing a single channel with a maximum current of 10A. It can be used for smart home automation, such as sliding gate automation, ensuring gates are securely locked. With Wi-Fi and RF control, it supports both traditional wired switches and modern voice control options, making your home smarter and more energy-efficient.

SPECIFICATIONS

  • Product Model

    ZEN-1C10W

  • Output Channel

    Single Channels

  • Radio frequency

    RF 433MHz

  • Storage Capacity

    Each channel can store up to 10 ZEN Switches Info

  • Installation Method

    The box of switch/socket

  • RF Receive Sensitivity

    -110dBm

  • IP Rating

    IP20

  • Versions Available

    ZEN-1C10W (Wi-Fi) ZEN-1C10 RF (Needs Gateway for App/Alexa Control)

  • Power Supply

    AC100V -240V 50/60Hz

  • Operational current

    10A

  • Operate range

    80m (Outdoors) 25m(Indoors), Depending on building materials

  • Wiring Method

    Terminals

  • Dimensions

    L44*W44*H22mm

  • Operational temperature

    -20°C ~ +55°C

  • Standby power consumption

    ≤0.5W

WIRING DIAGRAM

gate automation
  • L (Live Cable)

    Input Live Cable

  • IN (Input)

    Input Terminal

  • S

    Input Terminal for Traditional Switch, compatible with rocker switch and push button (detects switch type automatically)

  • N (Neutral Cable)

    Input Neutral Cable

  • OUT (Output)

    Output Terminal
