Lighting Control

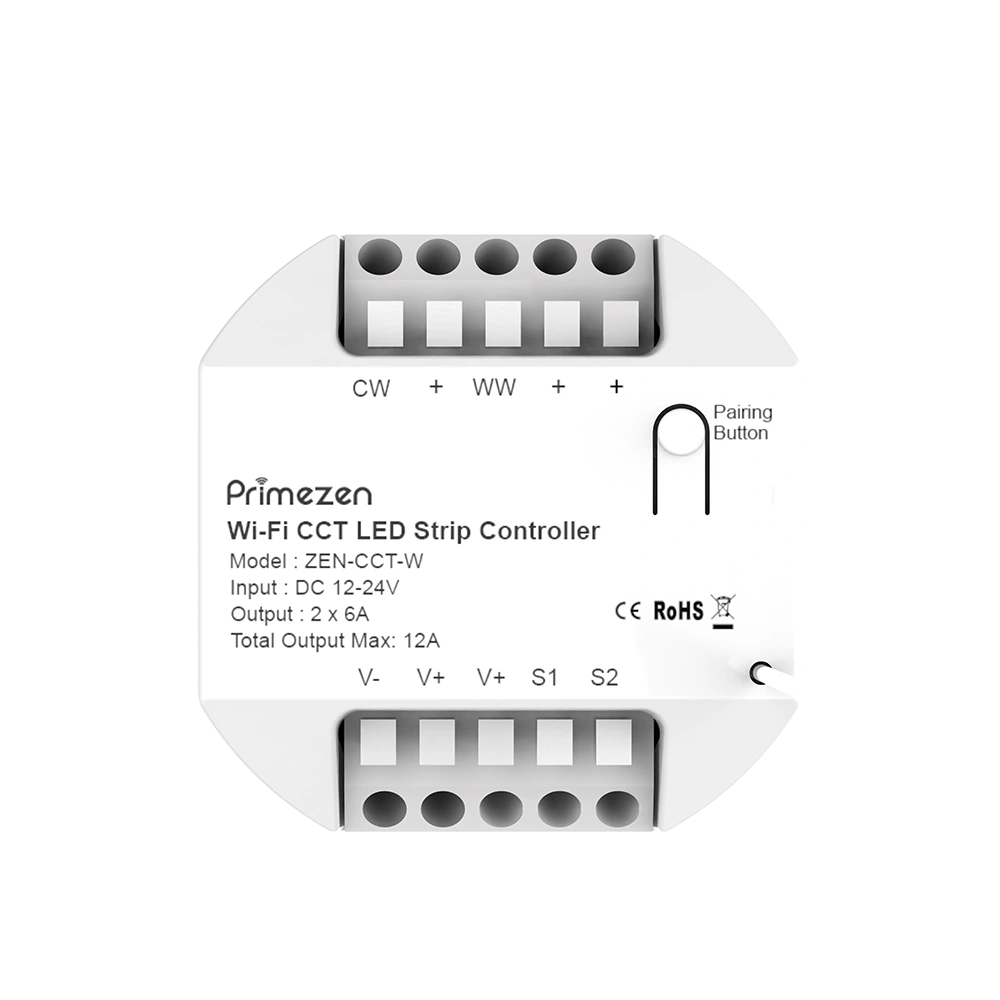

ZEN CCT W WiFi CCT LED STRIP CONTROLLER

Specification

Product Model

ZEN-CCT-W

Rated voltage

DC 12-24V

Rated current

6A/channel (Total 12A)

Rated Power

144W (DC 12V) <br>288W (DC 24V)

Working Temperature

-20&deg;C ~ +55&deg;C

Storage capacity

Up to 10 wireless switches

Control distance

80m(outdoor), 25m(indoor)

Working Frequency

RF433MHz & WiFi 2.4GHz

Dimming method

PWM

Sensitivity

-110dbm

Wiring Diagram

L (Live Cable)

Input Live Cable

N (Neutral Cable)

Common Neutral Cable
